Description

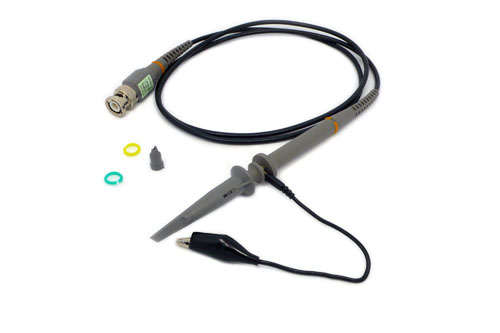

This P6100 probe can be used with general purpose oscilloscope having a 1MΩ input impedance and bandwidth up to 100MHZ. It is also compatible with our DSO Nano if you have a
TRS 3.5mm to BNC converter.
Specifications:
- Net Weight: 64g
- Cable Length: 120CM
Temperature:
- Operating -10°C -- +50°C
- Non operating -20°C -- +75°C
- Humidity 85% relative humidity
Pack list:
- Probe X1
- Probe Tip X1
- Ground lead X1
- Marker Ring X2
- Tip Locating Sleeve X1
- Adjustment Tool X1
Technical Details
Dimensions |
170mm x 100mm x 16mm |
Weight |
G.W 53g |
Battery |
Exclude |
此P6100探針可以與具有1MΩ的輸入阻抗和帶寬高達100MHZ通用示波器一起使用。這也是與我們的DSO納米兼容,如果你有一個
TRS3.5毫米到BNC轉換器 。
溫度:
- 操作-10℃ - + 50℃
- 非經營-20℃ - + 75℃
- 濕度85%相對濕度
包裝清單:
- 探頭X1
- 探頭尖端X1
- 接地線X1
- 標記環X2
- 提示定位套管X1
- 調整工具X1
