110070010 Left Mecanum Wheel Kit推薦購買價格代理經銷

原名

貨號

110070010

分類

Other for Robotics & CNC

特價

商品停售

由於停止生產、銷量不佳、升級改版... 或其他因素，SeeedStudio 原廠目前已經停止生產、供應、或銷售本件商品，請尋找其他替代品方案。

資料來源：https://www.seeedstudio.com/Left-Mecanum-Wheel-Kit-p-2274.html

Description

This product is retired, please consider our Skeleton Bot - 4WD Hercules Mobile Robotic Platform as your alternative choice.

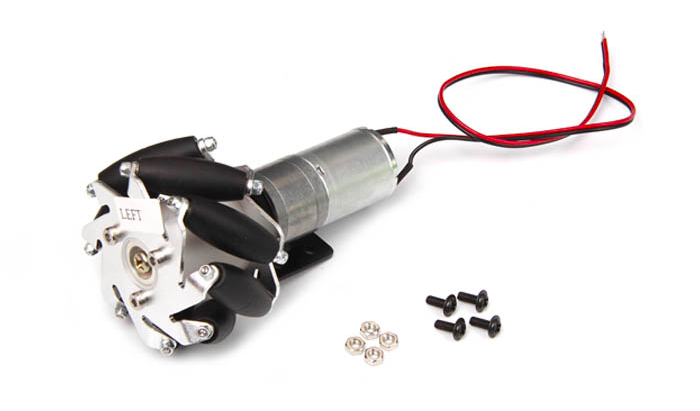

This kit consists of a left mecanum wheel, a DC motor, a motor support, a shaft connector and some screws as well as nuts. The mecanum wheel is a conventional wheel with a series of rollers attached to its circumference. These rollers each have an axis of rotation at 45° to the plane of the wheel and at 45° to a line through the centre of the roller parallel to the axis of rotation of the wheel. Due to its unique conformation, when the wheel rolls on the ground, a portion of the force in the rotational direction of the wheel will translated into a force normal to the wheel direction.

This kit is usually supposed to work together with other 3 Mecanum wheel kits (2 right, 1 left) in order to form an omni-directional mobile platform.

Features:

Omnidirectional transfer ability

Specification:

Wheel Direction: Left handed
Rated Voltage: DC 6 V (Voltage Range: 4V ~7V)
Rated Current: 950 mA (Max)
Rated Torque: 1 Kg.cm
Rated Speed: 250±10% rpm

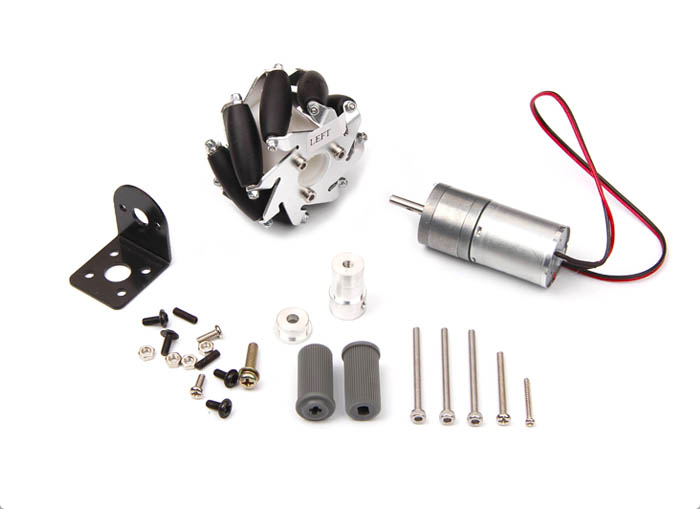

Part List:

1×Left Mecanum Wheel Φ60mm H32mm
1×DC Motor-25 GA 370 Standard Version
1×Motor Support for DC Motor-25 Series
1×Shaft Connector
2×Set Screw M3×5
1×Screw, Spring Lock Washer and Plain Washer assemblies M4×18
2×Cross Recessed Pan Head Screw M3×8
4×Cross Recessed Pan Head Screw with Washer M3×8
4×Hexagon Nut M3

Documents:

You can download the motor Specs here. Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo codes or tutorials. For technical supports, please post your questions at our forum

Technical Details

Weight	G.W 263g
Battery	Exclude

描述

此產品已退役, 請考慮我們的骨架機器人4WD 大力士移動機器人平臺作為您的替代選擇。

這個套件包括左 mecanum 輪, 直流電機, 電機支援, 軸連接器和一些螺絲以及螺母。mecanum 輪是一個傳統的車輪與一系列的軋輥連接到其周長。這些滾筒各有一個旋轉軸在45°到車輪的平面和在45°到一條線通過中心的滾筒平行的軸旋轉的車輪。由於其獨特的構象, 當車輪滾在地面上, 在車輪的旋轉方向的一部分力將轉化為一個力正常的車輪方向。

該套件通常應與其他 3 Mecanum 輪套件 (2 右, 1 左) 一起工作, 以形成一個全方位的移動平臺。

功能:

全方位傳輸能力

規範:

輪子方向: 左手
額定電壓: DC 6 v (電壓範圍: 4V ~ 7 v)
額定電流: 950 毫安培 (最大)
額定扭矩: 1 公斤
額定轉速: 250±10% 轉速

部件清單:

1×Left Mecanum 輪Φ60mm H32mm
1×DC Motor-25 GA 370 標準版
1×Motor 支援 DC Motor-25 系列
1×Shaft 連接器
2×Set 螺絲 M3×5
1×Screw、彈簧鎖緊墊圈和普通墊圈組合件 M4×18
2×Cross 凹槽盤頭螺釘 M3×8
4×Cross 凹槽盤頭螺釘, 帶墊圈 M3×8
4×Hexagon 螺母 M3

檔:

您可以在此下載馬達規格。有關此產品的更多資訊, 請訪問我們的wiki 頁。如果您能説明我們改進文檔, 添加更多演示代碼或教程, 將不勝感激。對於技術支援, 請在我們的論壇中張貼您的問題

技術細節

重量	G. W 263g
電池	排除
